Last week, I was returning back to Junee from the coast, and decided that I would break the journey at Cooma, and have a look around the railway station.

In happier times, the ARHS (ACT Division) ran a train of 3 railmotors to Cooma in 1987.  Here they are at the station

When I lived in the ACT area,  I visited Cooma regularly, but  normally on my way to somewhere else, and almost always in a hurry.  This was my first opportunity with a digital camera, and time to explore.

Cooma station is on the branch line, south of Goulburn.  The station was opened in 1889, and as befitting an important station, received a Whitton station building.  An extension of the line south of Cooma reached Nimmitabel in 1912, and finally to Bombala in 1921 (the same year as the line reached Tumbarumba).  Services south of Cooma ceased in 1986, and the last trains to Cooma finished in 1989 - just in time for the station' Centenary.

The line was built for agriculture - livestock, timber, and wool were the main outgoing commodities, although the Snowy Mountains Scheme used the line in the 1950s-70s for transportation of much material needed for dam construction

The "closure" of the line was blamed on the standard of the bridge at Numeralla, although the railways were looking for an excuse to shutdown unprofitable lines.

The Cooma Monaro Railway group has taken over the Cooma station, and lines north and south. They were running CPH railmotor trains about 10km north to Chakola until a few years ago.  More information on the  group at the website  http://www.cmrailway.org.au/

What has Cooma got to do with Wagga?

As the railway to Cooma closed before any major rationalization of the station, the station and its surrounds are effectively a time capsule.  There are many details that would have disappeared from Wagga, that could be seen at Cooma, particularly the signalling.  Anyway, I hope you enjoy this excursion further up the mountains

Looking south.

Station rear - a container and a skip are indications that there is work occuring by the CMR volunteers on refurbishing the station

In 1987, the rear of the station looked like this.  Note The lineside poles serving the signal box, have gone in the recent picture

Signal frame in the Cooma Signal box. Colours are red for signals, blue for locks, and black for points.

Platform scales

original type luggage cart

Platform seat

The CMR group had installed a number of descriptive plaques around the station, and yard to identify specific items.  Whilst slightly water damaged, the plaques had excellent information.

Part of the fueling point.

Another of my 1987 pictures shows the standard of the fueling point when it WAS in service.  Whilst  the plaque pictured above mentions the 12000 gallon diesel tank, it isn't there now.

Buffer at the dock may be similar to the one that has disappeared from Wagga

Engine Shed, signal, water column, water tank and paybus.  The coal stage is out of sight at the other end of the engine shed

Barracks - or Crew quarters.

"Loco"

Goods shed

Another view of the engine shed.  I understand that the CMR's CPH railmotors are stored in here

Just to the south of the station, the line crosses the Polo Flat road.  Polo Flat was once the site of the transshipment for  Snowy Mountains Scheme equipment, and supply delivery

FP11 Paybus.  Looking a lot worse for wear.

Water Column.  This is the style used on the Tumbaumba branch

Signal details

Signal details

Signal details

This signal is similar to the ones removed in 1983 at Wagga

Compensation pivots used to even out the effects of temperature changes in point rodding.  May only be a small thing in modelling, but their inclusion will do much for making a scene authentic.  Note, they are not always painted silver

Point throw, and point indicator

Much of the signal wires were supported on these posts, and pulleys

The 1987 railmotor tour crosses Ingalara Creek on the railway north of Cooma.  The bridges over this creek, Bredbo River, and Numeralla River were significant structures.

The 1987 railmotor tour on the line north of Cooma.
 The ARHS ran these railmotors on many of the NSW branch lines in 1987, on their 'Farewell Southern Branchline" tour.  One of these was the Tumbarumba line, out as far at Ladysmith.  The railmotors were I believe was the last train on the line

As a passenger on a rail tour, often one gets a chance for a photo run-by.  All the interested passengers will get off the train, and form a photo line.  The train will then backup a distance, before returning.  Before the use of video cameras, this was normally a quick process.  Now with video cameras, and mobile phones, the train had to back off a long distance, and continue steaming well after the last carriage has disappeared out of the view finder.  Anyway, here are the happy people scrambling back to the train after a successful photo run-by .  I am glad I finally get to share these images

Until next time.  Drive safely this Easter

Boral Bitumen Depot

Wagga’s Boral Bitumen depot

Bitumen is a component in road building.  In possibly a major simplification, once the road surface is prepared, a spray of hot bitumen (or “tar”), is spread across the surface, a layer of bluemetal is then dropped off the back of a dump-truck over the hot tar surface, and a road roller is then used to mash the bluemetal into the tar before the tar cools, and solidifies.



Looking south east, the depot is on the left-hand side

Transport of bitumen in railway bogie tank cars started in NSW in the 1950s.  I suspect this is when Wagga’s Boral bitumen depot was built.  Boral is a shortening of “Bitumen and Oil Refineries (Australia) Limited”

The location of the depot was sited off the Tumbarumba branch line, east of the Lake Albert Road level crossing.  At the time of its construction, it was on semi-rural land, but subsequent growth in East Wagga has surrounded it with industrial development

Since 1980, I have been taking photos of the depot from the rail line.  Initially it was just out of curiosity, but later, as my idea of a layout based on Wagga was forming, I knew I needed more pictures.  I gained permission in July 1999 to photograph the depot “from the inside”.  Unfortunately, by 1999, movement of bitumen by railway to Wagga had ceased.



1971 aerial view.  A tank car sits on the siding

Unloading pipe, and winch



Unloading pipe, and buckets. The buckets were to collect the drips, to stop oil contamination in the soil.  Probably wouldn't be allowed today, the whole area would be concreted, with a sump.

Points lever frame at the far end of the loop

Derail detail at the far end of the loop

Add caption

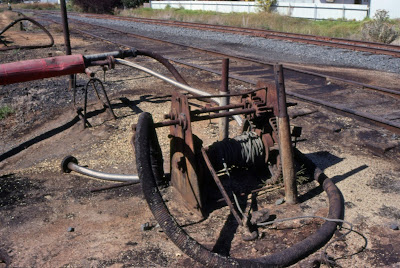

The hand cranked winch.  The winch looks like the same design that is used on the NSWGR 5 ton crane.  Assume that the winch was used to move a  tank car to the correct position for unloading.  Note the second unloading pipe in the distance.

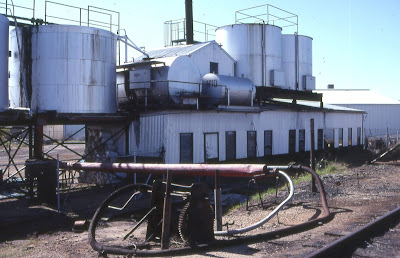

Steam pipes are attached to the tank car.  These pipes are used to heat the contents of the tank car, to allow the car to be unloaded.  How long is the process to heat the tankcar? Something that is not obvious in the picture, is the smell

The rail service had ceased by this stage - the tanks are in their original silver colour

July 1999 - the depot had been repainted green.

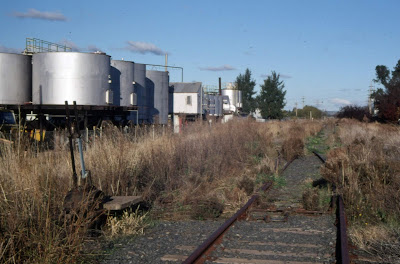

The 5 tanks seen from inside the depot

Ladder and railing detail for the 5 tanks

Loose sand, and gravel bins on site

4 tanks at the SE end of the site

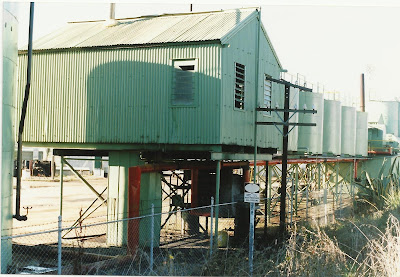

I believe this is the steam shed. I don't know what fuel is used to heat the steam, but it is probably one of the products shipped from the refinery

The Depot "Office"

Tanks and trucks

I suspect that different grades of oil are transported, in addition to bitumen to the Wagga Boral site.  The differences in the tanks is most likely the key - the smaller tanks are small enough to be heated by steam, whereas the oil in the larger tanks is most likely liquid at room temperatures.



2015 Image from "six maps".  All the tanks on the railside fence looks almost unchanged.

 Modelling notes



NTBF 4706 at the Boral Depot - Wagga

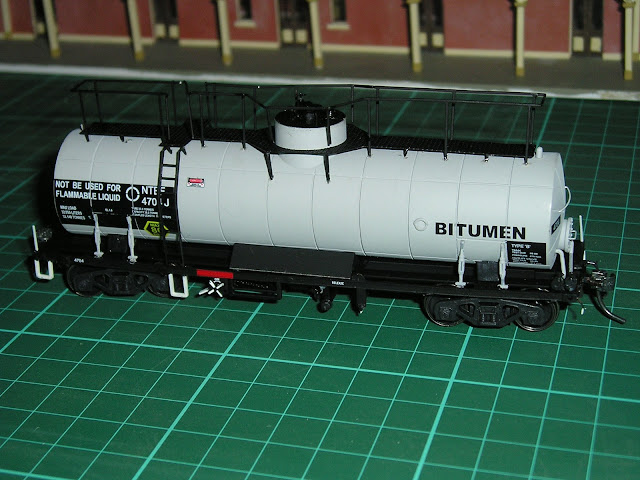

My SDS model of the NTBF tank car - really needing weathering.  Of note, the spelling of "litres" :- on the model is spelt "liters", and the length of the car is "meters" and not "metres".  I am not sure this american spelling is correct, but this is nit picking on what is a superb model.  The steam pipe connections are there on the RHS end.

Below information obtained from the Australian Modeller Website.  Used with thanks

====================

36’ BITUMEN and HEAVY OIL RAIL TANK CARS

Between 1957 and 1959 Tulloch Limited constructed 12 rail tank cars designed to carry bitumen or heavy oil products. The underframe design was standardised between all 12 cars, being 36’ long over headstocks with 6” channel solebars. Bogies were standard RTC 5’6” wheelbase with 33” diameter wheels. Wheel centres were spoked or 4 hole disc.

Of the twelve cars constructed, two 5000 gallon cars were built for Ampol, these were unlagged. They were designated to carry black oil products and fitted with steam heating coils to assist with content discharge, if required. They were numbered AMP No.32 and No.33 and painted corporate blue, later becoming NTBF 4032 and 4033 and re-painted black.

Nine 7500 gallon cars were built for Bitumen and Oil Refineries (Australia) Limited, BORAL, all of these cars were lagged. Cars RC100 to RC108 were fitted with steam heating coils, RC107 and RC108 were also fitted with gas burner heating tubes and end flues. The gas burner fittings were identical to the road tankers, which allowed content heating with the road tanker equipment. All were clad in polished aluminium sheeting with black painted metal work.

Later RC100, 101 and 102 had the lagging removed but retained the steam heating coils for black oil products. The BORAL registered cars migrated to the TOTAL fleet in the 1970s; TP100 was re-painted black and TP101 and TP102 were painted Indian red with orange TOTAL branding.

One further car (7500 gals) was built for BHP.

 ==================

All the above cars were recoded NTBF.  In 1982, Total had 22 NTBF tankers in service.  Bitumen was shipped from Shell’s Clyde refinery by rail until sometime in the 1990s.  Shell closed the Clyde refinery in 2013.  Bitumen is now imported to a terminal in Port Botany, and distributed by road

An article on building a  Bitumen wagon was written by Howard Armstrong in AMRM issue 19, over 50 years ago,  Disappointingly, there has been nothing since in AMRM, or Branchline Modeller/AJRM, not even a review of the Bitumen tank wagon.

I have been unable to find a lot of information about bitumen transportation by rail.  There are still a lot of questions that to me, remain unanswered.     Thanks must go out to SDS Models for producing the bitumen tank wagon.  I note that all versions have sold out, although I for one, am hoping they will do a rerun – particularly as my pair of wagons is too late for my time period.

I have started drawing plans for  the depot.  I have chosen 1:100 scale, but even so, the depot will extend for over a metre besides the track.  I will have to wait until I get the track down before starting construction, as I may have to employ some more selective compression

Continuing my exploration of the railway at Wagga, has given me a better understanding, and appreciation of railways in general.. I hope that this will culminate  into a better model operation.   And if nothing else, maybe, my small article will be the incentive for anyone wanting to build their own Boral depot
