Riverboats on the Murrumbidgee

I have been asked about the paddlesteamer positioned in the picture at the end of my latest Blog post.

Paddle steamers were once a common sight on the Murrumbidgee River in Wagga, although that was generally before the railway arrived.  According to Keith Swan’s book “A History of Wagga Wagga”,  the steamers “Corrong” and “Wagga Wagga” were employed to take railway construction material downstream to Narranderra (where the railway there was being built), and cut redgum timber back to Wagga in 1879, and 1880.  The transport of redgum sleepers from the Narranderra sawmill via the river continued  until 1914 according to Keith Swan.  Upstream activity to Mundarlo for limestone occurred occassionly.

Riverboat on the Murrumbidgee, believed at Wagga dock in the 1870s

PS Wagga Wagga at Brewery Flats, Narrandera

Wagga Wagga dock - approx 1900.  Note (In the background) Hampden Bridge was constructed in 1895, and was demolished around 2015, after being bypassed with a new bridge, and being too expensive for Wagga council to maintain. It had the largest (by area) deck per span of any timber truss bridge in Australia

A picture of a paddlesteamer on the Wagga Dock, with Hampton Bridge in the background. This is an image displayed at the Wagga Wagga Regional Museum

Another picture from the Wagga Wagga Regional museum, and a description.  Whilst snags were removed from the river for navigation, the rest of the narrative about the river is from my research, a little fanciful. Charles Sturt used a longboat in 1829 to explore the river, and I have not sighted any description of the water clarity in his diary entries

The remains of PS Wagga can be seen during low flows of the Murrumbidgee at Narrandera

==

There is a report of the PS Albury attempting to get to Gundagai loaded with sawmill equipment for Adelong.  It ran aground on a sandbar, and was only refloated when the equipment was offloaded.  On the return trip downriver, it was loaded at Wagga with supplies, and enroute to South Australia, also picked up wool bales

"PS Albury" around 1870.  This was the first paddlesteamer said to have reached Gundagai in 1858.  Image stolen from Albury and District Historical society

Lift bridges

Whilst there were a lot of lift spans on ther Murray, and Darling rivers, I was made aware of two on the Murrumbidgee:- Carrathool, and Hay (although I haven't found photo evidence of Hay's bridge).  There might have been one at Balranald, but again, that would be speculation.  The bridge at Carrathool is the only one remaining; no longer in use, but preserved.

Google image of the bridge dates from 2016

Plaque on the bridge, gives information on the construction.  1924 seems a bit late, as the steamer trade would been just a shadow of what it was in the late 1800s.

Sightseeing on the Murrumbidgee

For a time, there was a commercial venture based near Eunony Bridge (east Wagga) which offered a sight seeing boat on the Murrumbidgee twice a week  Unfortunately, it was an oversided “Tinny” rather than a paddlesteamer.   Fishing boats, and canoes are still fairly common sights - boat loading ramps can be found at various locations

Where to find paddlesteamers?

Paddlesteamers would be rare now on the Murrumbidgee, but can still be found on the Murray River, where one can get an authentic feel.  And if Echuca is too far, then the PS Enterprise is in Canberra on Lake Burley Griffin.  So it is not too far fetched that a paddlesteamer may make it again to Wagga.

Pevensey at Echuca Dock. VR Railway shed on the Righthand side of the picture

Steaming on the Murray. Note the water colour

PS Adelaide at Echuca in the 2010 flood

I have had an interest in paddle steamers for many years. When LJ Models brought out their kits of PS Adelaide, and PS Pevensey in the 1990s, I bought both.  Instead of building the kits, I used the plans to construct versions in wood.   Both my models remain uncompleted.

My unfinished scratch built paddlesteamers, PS Pevensey, and PS Adelaide.

About 10 years later, came the sad news that Fred Gill MMR, had passed away.  Fred was very  influential in the hobby, and many of his scratch building articles and  tips in early AMRM magazines are still inspiring.  (hint: search for his name in the on-line AMRM Index)  The NMRA was asked to find homes for his models, and the lists included the PS Adelaide.  The start price was reasonable, and I was successful in my bid.  I expected it to be the LJ models kit version, so I was very surprised when it wasn’t.   The model is  is exquisite in the detail.

Unfortunately, there was some postal damage to the wheelhouse, and the stay support post, but these were easy to fix.

Fred Gill's, PS Adelaide - with some damage to the wheelhouse, and stay post

After repair, I thought I would see the differences.  My model is based on the LJ Models kit, and is close to the present  configuration, (which I photographed in 2010 - picture earlier in this blogpost)

After repair. There are some differences in the two models.  I do not know where Fred got his plans from, and I suspect this will remain a mystery.  The general size of the lower deck, and dimensions is quite similar.  From a technical viewpoint, how does the captain, and his dog  get into the wheelhouse, as there are no steps to get from the lower deck to the wheelhouse deck.?

So, as my tribute to Fred, I will proudly display his model on my river.  I hope you will all allow me this indulgence.

Murrumbidgee River bridge – part 4 – Track

Compromises are something we all have to deal with .  On a model railway, almost every decision is a choice between alternatives,  and  there is a trade-off between speed of construction, the size of the layout,  materials used, money spent, and satisfaction of the finished product.

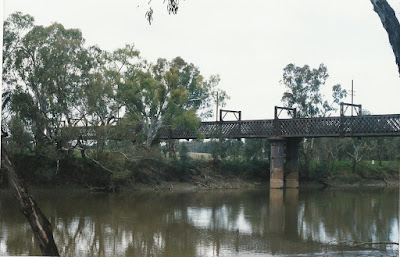

Murrumbidgee river at low flow levels. Note the weathering effect of the river on the piers.

The Murrumbidgee River bridge is a model where I have tried to push my own modelling standards, at the expense of money spent, and time.  I am fortunate that I am not up to my armpits on actually building the layout proper at the moment, as the goal  to get trains running would have me working on other tasks.  The layout room build is still some way off.

Even so, I am glad that my bridge model is not full length, as the construction of the shortened version  has become  a marathon.  The end is in sight.

The trackbed of the real bridge consisted of 2  metal girders running the full length of each span.  Sleepers laid across the top of these 2  girders.  The Uneek kit supplies 2 thin stripwood lengths to substitute for the lengthwise girders.  The assumption,  although not stated in the Uneek instructions, is that one will use flextrack for the bridge track.  Simple and quick.  Well, this was a compromise that I wasn’t going to take.  It looks wrong

I lacked measurements of the lengthwise girders, although my own detail photos gave a hint of the size.  I also needed to maintain the “loading gauge” clearances for locos and rolling stock, so they couldn’t be too thick.

 I checked the Greg Edwards data sheets (sheet P13) to get some ideas of the measurements on unballasted bridge decks.  The sleepers are spaced about 11mm apart for HO (just under 3 scale feet), and the sleepers are longer than sleeper length on ballasted track   Searching my supplies, I re-discovered a Campbell’s packet of 500 bridge and trestle ties, and rather than make yet another pair of metal girders, I thought the 10” square North Eastern stripwood would work.

Eight lengths of 10” square stripwood were painted grimy black to match the colour of the bridge spans.  Calculations showed just over 200 sleepers were needed.  I painted these sleepers white in batches over a few days.

Some of the timber after painting. I have decided to go with a full white sleeper, rather than just painting the tips. This may be a mistake (or own goal), but it is my layout, staining the sleepers first would have added yet more time to the project, and I am building the bridge for me.

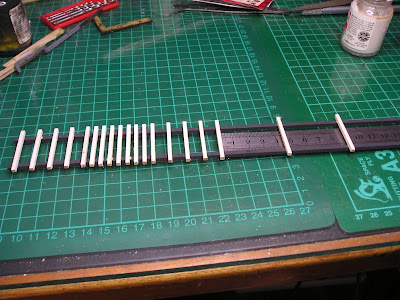

Adding the sleepers to the span.  I found it easier to measure 88 mm (7 sleepers worth), and flue down one sleeper.  When this was dry, I would then halve the gap, etc, until 8 sleeprers were in place.

After the first base made, the spacing could be transfered to the second, third and fourth.

Fitting the sleepers to the girders is as pictured.  Make sure that everything is as square as possible.  I am using PVA glue as the adhesive.   I am also building this on a sheet of glass, to stop any twists, and bumps

The rail is stripped from Peco SL100X flex track   Yes, Code 100 – which is yet another compromise.  My experience with code 100 in the past with “12^th Street Yard”, and “Yendys”  has been fairly positive, provided the rail is painted.  Removal of the shine on the sides of the rail is the key to hiding the rail height.   On the forementioned layouts, I sprayed Floquil “Roof Brown” on the track – including the sleepers, cleaned paint off the railhead, and ballasted afterwards.  Spraying the rail once it was down on my bridge isn’t possible, so the rail has to be painted   first.

Having observed handlaid track on many layouts, both in Australia and in the USA, shows that it is spiked directly to the sleeper base.  But to my eyes,  it doesn’t look right.  Something is missing?  Have you noticed?  Every wooden sleeper should have a pair of tie plates, that hold the rail in position.

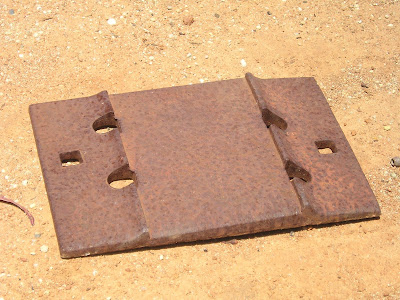

The tie-plate pictured is 20 cm x 30cm in size.  In HO, this is around 2.3mm x 3.5mm.  As the peco code 100 rail track base is marginally wider than scale, I thought I would go with 2mm x 4mm.  I thought about many methods to simulate this on the sleeper.  In the end, I painted  Floquil roof brown onto white paper, sliced off a 2mm strip, and chopped the strip into 4mm lengths.    I have placed no other detail on them.  A spot of glue on the sleeper, and place the paper tie plate in roughly the right position, adjust, and wait for the glue to dry.   Hint, use the tip of a sharp knife (I used a #11 surgical scalpel blade) to spear the paper, and then move it to the glue spot.  The glue will pull the paper off the knife tip, and the knife tip can then align the paper.

Paper tieplates added to the sleepers

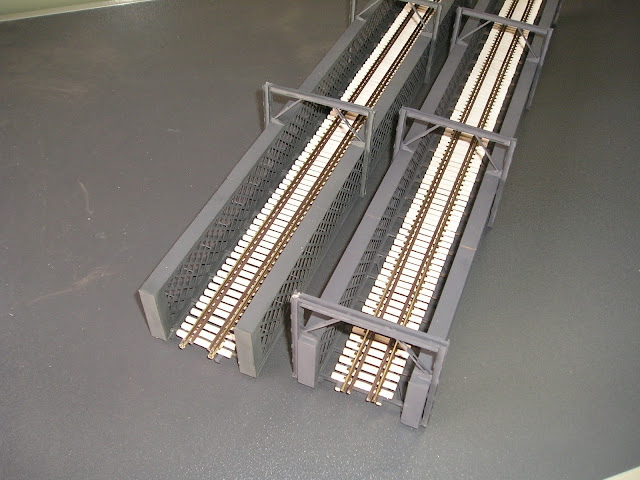

The track to the right has the tieplate detail, to the right without for a direct comparison. . Make up your own mind to whether this detail is worth the effort?

I thought I would see if the effect is worth the time and effort.  It is subtle, but I do like it.  What is also apparent, is that the tie plates are not consistently positioned on the sleepers.  I will have to adjust my technique in the future, as the viaduct track will not be hidden by the bridge girders.

Rather than spiking the rail to the sleepers, I used Techgrip Polyurethane  adhesive I bought from Bunnings, and smeared it on the rail underside. With  track gauges to hold the rail at the correct gauge,  apply weight.  The glue goes off slowly, allowing fine adjustments in the first 15 minutes .  Important to try and  get the new track centered exactly over the sleepers.

Checkrails.  I have always thought that raill bridges should have checkrails, but the end view of the cut-up bridge at Wagga only shows the main running rails.  However, I was sent a picture of the Whitten truss bridge at Woolbrook, and it has checkrails.

Woolbrook Whitton Truss bridge - single span.  the checkrails positioning does not follow the Greg Edwards Data sheet, so this pattern won't be followed

Interestingly, the rail appears to be spiked directly onto the sleepers, with no tie-plates.  This is good, as that means that the check rail will be slightly lower than my running rails, so they may not lose the paint during track cleaning.. The check rails were painted, bent to shape, and glued  between the main running rails

Attach the track base girders to the Whitton truss with adhesive.  In this case I used PVA glue.  The glue takes a few minutes to go off, which allows for adjustment, but also if I ever need to remove the bridge deck, then the glue can be pulled apart without undue damage to the bridge deck or the bridge. Again, make sure the rail is centered. This is the last chance to get this right

The bridge deck extends onto the future viaduct.

Fishplates are there as a aligning point, where the bridge spans meet.  I have another sleeper (not shown) to fit under the fishplate when the bridge is finally installed  on the layout

I have fitted  fishplates to the end of one bridge span, as I want to be able to separate both spans for storage.    My goal with this series of Blog Posts was  to complete the 2 main spans, and lay track.  Actual installation on the layout is in the future, as the process to create my train room out of half my garage is ongoing.  Decisions on the river depth will then be made, installation and weathering of the plaster piers, as well as the construction of some of the connected viaduct.

It was 43 degrees C outside, and a wind blowing in Junee, so I took these pictures inside. The plaster piers have been painted since the initial part 1 blogpost, and they are just holding the bridge up by gravity.  The "Adelaide" paddlesteamer was built by the late Fred Gill MMR, and whilst well out of time period, it seemed too nice a model to not use.

Some colour at the end.  Loco and carriages all fit under the overhead girder sections.  Whew!!,

Until next time,  build a model or two.  Happy modelling
